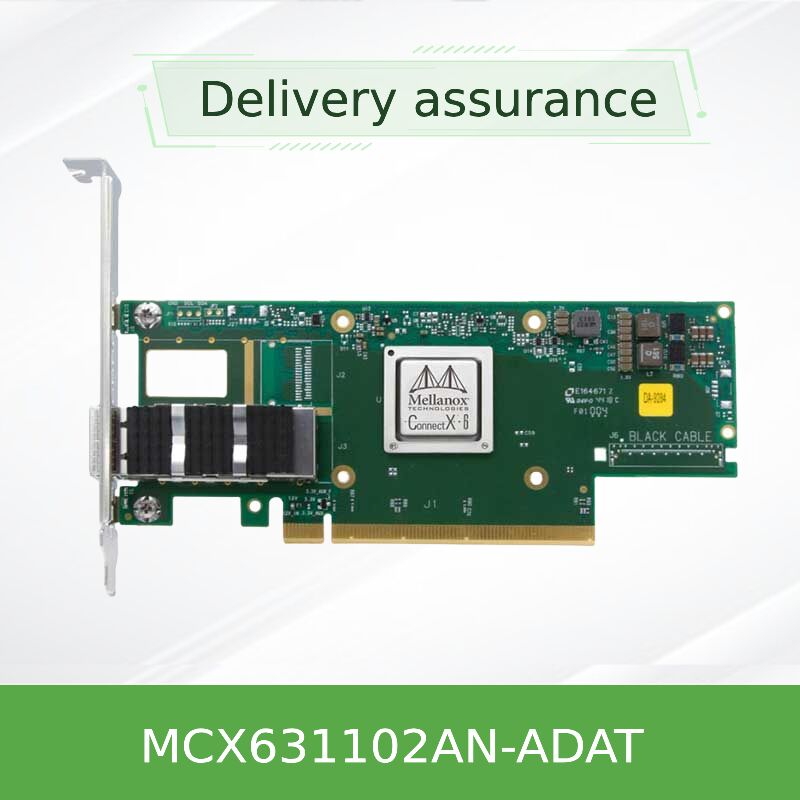

NVIDIA ConnectX-6 Lx MCX631102AN-ADAT OCP 3.0 Adapter for Cloud & Enterprise
Detalhes do produto:
| Marca: | Mellanox |
| Número do modelo: | MCX631102AN-ADAT |
| Documento: | connectx-6-infiniband.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | Negotiate |
| Detalhes da embalagem: | Caixa externa |
| Tempo de entrega: | Baseado no inventário |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Fornecimento por projeto/lote |
|
Informação detalhada |
|||
| Status dos produtos: | Estoque | Doença: | Novo e Original |
|---|---|---|---|
| Tecnologia: | Ethernet | Interface de rede: | Duas faixas serdes suportando 25gb/s por pista, para várias configurações de porta: -2x 10/25 GBE -1 |
| Interface do host: | PCIE Gen 4.0, 3.0, 2,0, 1,1 16,0, 8.0, 5.0, 2,5 gt/s taxa 8 faixas de mecanismos PCIE MSI/MSI-X | Velocidade: | 25 Gbps |
| Conectores: | 2 x SFP28 | Interface: | PCIE 4.0 x8 |
Descrição de produto
MCX631102AN-ADAT | OCP 3.0 25/50GbE Ethernet Adapter with Crypto and SDN Acceleration
Deliver scalable, secure, and high-performance networking for modern cloud and enterprise data centers. The ConnectX-6 Lx MCX631102AN-ADAT features OCP 3.0 small form factor, dual-port 10/25GbE or single-port 50GbE connectivity, PCIe Gen4 x8 host interface, inline IPsec encryption, and Zero-Touch RoCE — designed to reduce CPU overhead and accelerate SDN and NFV workloads in dense server deployments.
NVIDIA ConnectX-6 Lx Ethernet SmartNICs bring breakthrough efficiency to 25GbE deployments. The model MCX631102AN-ADAT is an OCP 3.0 small form factor (SFF) adapter equipped with advanced ASAP2 acceleration, hardware root-of-trust, and full support for RoCE (RDMA over Converged Ethernet). The OCP 3.0 form factor enables hot-pluggable, tool-less installation in OCP-compliant servers, making it ideal for hyperscale data centers and cloud builders. Whether you are virtualizing network functions, securing east-west traffic, or building a high-frequency trading environment, this SmartNIC offloads the data plane and ensures line-rate performance at up to 75 million packets per second (Mpps).
- High Throughput and Connectivity: Dual-port 10/25GbE or single-port 50GbE; total bandwidth up to 50Gb/s.
- OCP 3.0 Small Form Factor: Hot-pluggable, tool-less installation, compliant with Open Compute Project specifications.
- PCIe Gen4 and Gen3 x8: Host interface compatible with PCIe 4.0 (8 lanes) and backward compatible to Gen3.
- ASAP2 SDN Acceleration: Offloads overlay encapsulations (VXLAN, GENEVE, NVGRE) and stateful connection tracking (L4 firewall).
- Zero-Touch RoCE (ZTR): Seamless RDMA deployment without PFC or ECN configuration; resilient and scalable.
- Inline IPsec Crypto Acceleration: AES-XTS 256/512-bit hardware encryption and decryption, supports IPsec over RoCE.
- Hardware Root of Trust: Secure boot, RSA-authenticated firmware updates, device-unique key for clone protection.
- Virtualization Ready: SR-IOV, VirtIO acceleration, overlay offloads for containerized and virtualized environments.
The ConnectX-6 Lx integrates NVIDIA ASAP2 (Accelerated Switch and Packet Processing) technology, enabling full SDN data plane offload to the SmartNIC. This dramatically reduces CPU burden in software-defined data centers while supporting both cloud (VXLAN, GENEVE) and telecom (MPLS, GTP) encapsulations. Meanwhile, Zero-Touch RoCE eliminates legacy RDMA configuration pains, allowing RoCE traffic to run on standard Ethernet fabrics without priority flow control or explicit congestion notification. Combined with inline IPsec cryptography, the adapter secures data in transit at line rate, preserving performance for encrypted east-west communications. Hardware root-of-trust further protects the supply chain, ensuring that only authenticated firmware executes during boot.
- Hyperscale Cloud Data Centers: OCP 3.0 compatibility enables standardized, high-density server deployments.
- Cloud and Enterprise Data Centers: Accelerate Open vSwitch (OVS) and SDN controllers; offload connection tracking for stateful firewalls.
- NFV and Telecom Infrastructures: Deploy virtualized packet gateways, GTP encapsulation and decapsulation, and MPLS acceleration.
- High-Performance Storage and HPC: RoCE-based NVMe over Fabrics, distributed storage (Ceph, Lustre) with low latency.
- Edge and AI Inference Servers: 50GbE single-port density for edge nodes requiring inline security and OCP compatibility.
NVIDIA ConnectX-6 Lx adapters are supported across major operating systems, hypervisors, and container platforms. Common validated environments include:
- Linux: RHEL, Ubuntu, Debian, CentOS, Rocky Linux, SUSE
- Windows Server 2019 and 2022
- VMware ESXi (with SR-IOV and VirtIO offload)
- Container runtimes: Docker, containerd with CNI plugins
- Orchestration: Kubernetes, OpenStack, OpenShift
- DPDK and VPP for high-performance user-space networking
For detailed firmware and driver versions, refer to NVIDIA's official documentation or contact Starsurge technical support.
| Parameter | Specification |
|---|---|
| Product Model | MCX631102AN-ADAT |
| Form Factor | OCP 3.0 Small Form Factor (SFF), hot-pluggable |
| Port Configuration | 2x 10/25GbE or 1x 50GbE (SFP28) |
| Host Interface | PCIe Gen4 x8 (compatible with PCIe Gen3 x8) |
| Maximum Throughput | 50Gb/s total bandwidth |
| Message Rate | 75 million packets per second (Mpps) |
| RoCE Support | Zero-Touch RoCE, RoCE Congestion Control, IPsec over RoCE |
| Security Offload | Inline IPsec (AES-XTS 256/512-bit), hardware root-of-trust, secure firmware update |
| SDN / Overlay Offload | VXLAN, GENEVE, NVGRE, MPLS, GTP; ASAP2 connection tracking and stateful firewall |
| Virtualization | SR-IOV (up to 256 VFs), VirtIO acceleration |
| Management | NC-SI, MCTP over SMBus/PCIe, NCSI over RBT, PLDM for monitor/control and firmware update |
| Remote Boot | PXE, iSCSI, UEFI (x86 and Arm) |
| Power Consumption | Not publicly specified – please confirm with ordering |
| Operating Temperature | 0°C to 55°C (typical), refer to user manual for exact derating |
| Ordering Part Number | Description | Crypto Acceleration | Form Factor |
|---|---|---|---|
| MCX631102AN-ADAT | ConnectX-6 Lx, 25/50GbE, dual-port SFP28, OCP 3.0, crypto enabled | Yes (IPsec inline) | OCP 3.0 SFF |
| MCX631102AN-ADAB | Same specifications but PCIe Low Profile form factor with crypto | Yes | PCIe Low Profile |
| MCX631102AN-CDAT | Non-crypto version, OCP 3.0 form factor (no IPsec engine) | No | OCP 3.0 SFF |
For additional ordering codes or volume pricing, please contact Starsurge sales team.
- Authorized Supply Partnership: Genuine NVIDIA adapters with full warranty and traceability.
- Technical Pre-Sales Support: Compatibility validation, driver guidance, and performance tuning.
- Global Logistics and Fast Shipping: Warehousing in Asia-Pacific and Europe; express delivery worldwide.
- Competitive Volume Pricing: Tailored quotes for data center rollouts, ODM and OEM projects.
- After-Sales Care: Firmware update assistance, RMA handling, and extended technical service agreements.
Hong Kong Starsurge Group provides a complete lifecycle support package: pre-sales architecture review, cross-shipment RMA options, driver and firmware advisory, and remote troubleshooting. For enterprise customers, we offer on-site integration support (depending on region) and training for SDN acceleration with ASAP2 and RoCE deployment.
A: Both include IPsec crypto acceleration. The ADAT uses OCP 3.0 small form factor (hot-pluggable, tool-less), while the ADAB uses PCIe low-profile form factor for standard server slots.
A: Yes, the dual-port adapter can be configured as one 50GbE port (using breakout cables) or two independent 25GbE or 10GbE ports.
A: OCP 3.0 is an open hardware standard for network adapters, enabling hot-swappable, tool-less installation and improved serviceability in hyperscale data centers.
A: ZTR works on standard lossy Ethernet networks without requiring PFC or ECN, making it far easier to deploy compared to traditional RoCE.
A: Standard lead time is 2 to 4 weeks depending on quantity. Contact Starsurge for current stock availability.
- Ensure your server chassis has an OCP 3.0 compliant mezzanine slot.
- Use certified SFP28 optical or DAC cables for 25/50GbE operation.
- For crypto functionality, appropriate software configuration may be required; refer to NVIDIA DOCA framework.
- Parameters not explicitly listed (e.g., exact power consumption) should be confirmed before volume orders.
Founded in 2008, Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration. Serving government, healthcare, manufacturing, education, finance, and enterprise sectors worldwide, Starsurge delivers networking switches, SmartNICs, wireless solutions, and custom software. With a customer-first approach, multilingual support, and global delivery capabilities, Starsurge helps clients build efficient, scalable, and dependable infrastructure. As a trusted partner for NVIDIA networking solutions, we combine technical expertise with responsive service.
Global shipping and local support | Email: sales@starsurgegroup.com | Website: starsurgegroup.com (example)
| Environment | Driver Support | SR-IOV | VirtIO |
|---|---|---|---|
| Linux (RHEL 8/9, Ubuntu 20.04/22.04) | Native inbox and OFED | Yes | Yes |
| Windows Server 2019 and 2022 | NVIDIA WinOF-2 | Yes | No |
| VMware ESXi 7.0 and 8.0 | Native nmlx5_core | Yes | Guest OS dependent |
| Kubernetes / OpenShift | SR-IOV CNI + Multus | Yes | VirtIO offload supported |
- Confirm server OCP 3.0 slot compatibility (not PCIe slot).
- Verify port speed requirements: 10/25GbE dual-port or 50GbE single-port mode.
- Determine crypto requirement: ADAT includes IPsec, non-crypto variants available.
- Ensure OS and driver compatibility with ConnectX-6 Lx series.
- Contact Starsurge for volume pricing and lead time.
