NVIDIA MMA4Z00-NS400 400Gb/s OSFP SR4 Multimode Transceiver
Detalhes do produto:
| Marca: | Mellanox |
| Número do modelo: | MMA4Z00-NS400 |
| Documento: | MMA4Z00-NS400.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | Negotiate |
| Detalhes da embalagem: | Caixa externa |
| Tempo de entrega: | Baseado no inventário |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Fornecimento por projeto/lote |
|
Informação detalhada |
|||
| Doença: | Novo e Original | Disponibilidade: | Estoque |
|---|---|---|---|
| Tecnologia: | Infiniband e Ethernet | Velocidade máxima: | 800 GB/S. |
| Comprimento: | 50m | Faixa de temperatura: | 0 ° C a +70 ° C. |
| Nome: | transceptor óptico emllanox mma4z00-ns400 400gb/s de porta única OSFP 400GB/s Multimodo SR4 transcep | Palavras-chave: | Transceptor óptico Mellanox |
| Destacar: | NVIDIA 400Gb/s OSFP transceiver,OSFP SR4 multimode transceiver,Nvidia optical transceiver with warranty |
||
Descrição de produto

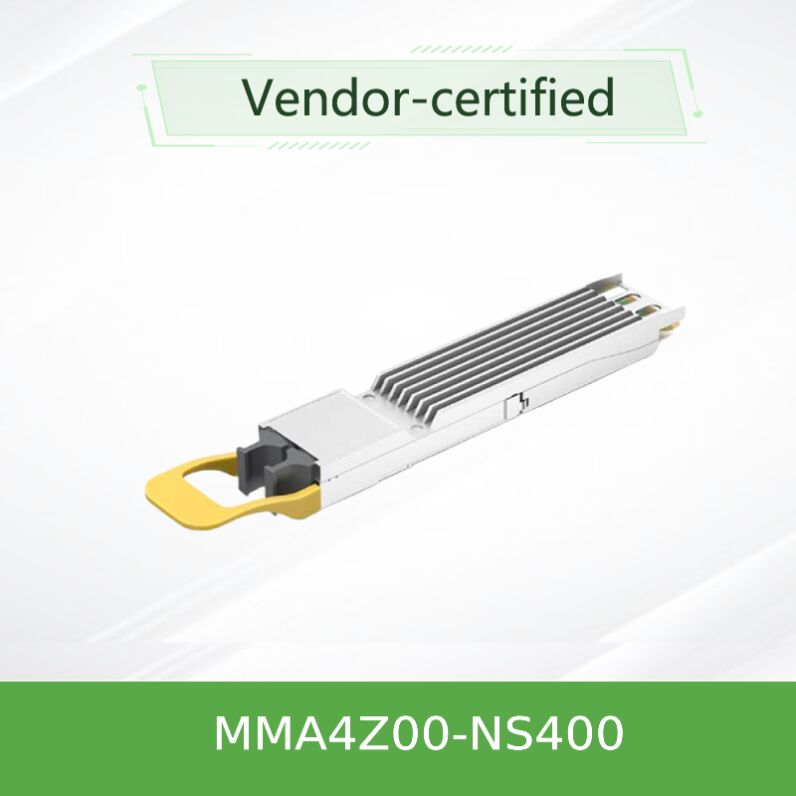

NVIDIA MMA4Z00-NS400 400Gb/s OSFP SR4 Multimode Transceiver
Single-Port 400G NDR InfiniBand/Ethernet Optical Module for ConnectX-7, MPO-12/APC, 50m Reach on OM4 Fiber
NVIDIA MMA4Z00-NS400
The NVIDIA MMA4Z00-NS400 is a 400Gb/s single-port OSFP SR4 multimode transceiver designed for NVIDIA ConnectX-7 adapters and Quantum-2 / Spectrum-4 switches. It supports both InfiniBand and Ethernet protocols with automatic protocol detection. Utilizing 4 channels of 100G PAM4 modulation, it delivers up to 50 meters reach over OM4 multimode fiber via a single MPO-12/APC connector. The flat-top design integrates with the riding heatsink on ConnectX-7 cages for optimal thermal performance.
Product Overview
The MMA4Z00-NS400 is a key component in NVIDIA's end-to-end 400G InfiniBand and Ethernet ecosystems. It is specifically engineered for use with ConnectX-7 OSFP-based host channel adapters (HCAs) and connects to twin-port OSFP transceivers in NVIDIA Quantum-2 or Spectrum-4 switches. The module features 4 independent transmit and receive channels using 850nm VCSEL technology. When paired with a 1:2 splitter fiber cable (MFP7E20 series), only two channels are activated, automatically reducing the speed to 200Gb/s (NDR200) and lowering power consumption to 5.5W. The transceiver is CMIS 4.0 compliant and supports advanced digital diagnostics monitoring (DDM).
Key Features
- Dual-Protocol Support: Seamlessly operates in both InfiniBand (NDR) and Ethernet (400GbE) environments with automatic protocol detection.
- High-Speed Optics: 4 channels of 100G PAM4 modulation with 850nm VCSEL arrays.
- Extended Reach: 50 meters over OM4 multimode fiber, 30 meters over OM3.
- Intelligent Power Scaling: Automatically reduces power from 8.5W to 5.5W when operating in 200G mode (2-channel mode).
- Flat-Top OSFP Design: Optimized for thermal management with the riding heatsink on ConnectX-7 adapter cages.
- Angled Polish Connector: MPO-12/APC (green shell) minimizes back reflection; not compatible with UPC (aqua) connectors.
- Comprehensive Diagnostics: Supports Tx/Rx power monitoring, bias current, voltage, and temperature via DDM.
- Regulatory Compliance: Class 1 laser safety, RoHS compliant, OSFP MSA and CMIS 4.0 compliant.
Optical & Electrical Technology
The MMA4Z00-NS400 leverages 100G per lane PAM4 modulation technology. The electrical host interface consists of 8 differential pairs (4 Tx, 4 Rx) operating at 53.125 Gbaud. The optical engine uses 850nm VCSELs with integrated driver and TIA arrays. The module includes adaptive Tx input equalization, programmable Rx output amplitude, and pre-/post-cursor tuning for signal integrity optimization. Built-in PRBS generator and checker enable in-system link validation without external test equipment.

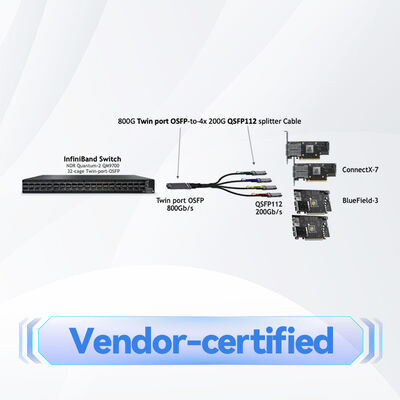

Typical Deployments & Use Cases
- Switch-to-HCA 400G Links: Connecting a Quantum-2 or Spectrum-4 switch (using twin-port transceivers) to a ConnectX-7 OSFP adapter via straight MFP7E10 fiber cables.
- 200G Fan-Out Configuration: Using MFP7E20 1:2 splitter cables to connect one twin-port switch transceiver to four ConnectX-7 adapters operating at 200Gb/s each.
- Switch-to-Switch Uplinks: Direct attachment to twin-port transceivers in switches for 400G or 800G aggregation.
- High-Density AI Clusters: Enabling low-latency, high-bandwidth connectivity in GPU-accelerated environments with BlueField-3 DPUs (via QSFP112 adapters).
Note: This OSFP module is not compatible with BlueField-3 DPUs, which require QSFP112 form factor.
Compatibility
- Adapters: NVIDIA ConnectX-7 OSFP-based Host Channel Adapters.
- Switches: NVIDIA Quantum-2 InfiniBand switches (with twin-port OSFP), NVIDIA Spectrum-4 Ethernet switches.
- Fiber Cables: NVIDIA MFP7E10 series (straight, 4-channel MPO/APC to MPO/APC) and MFP7E20 series (1:2 splitter, 4-channel to dual 2-channel MPO/APC).
- Protocols: InfiniBand NDR (400Gb/s) and NDR200 (200Gb/s); Ethernet 400GbE and 200GbE.
Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | OSFP (flat-top) |
| Data Rate | 400Gb/s (4x 100G PAM4) / 200Gb/s (2x 100G PAM4 in splitter mode) |
| Connector Type | MPO-12/APC (angled polish, green shell) |
| Fiber Type | Multimode (OM3/OM4) |
| Maximum Reach | 50m on OM4, 30m on OM3 |
| Wavelength | 850nm (typical) |
| Power Consumption (max) | 8.5W at 400G; 5.5W at 200G; 2W in low-power mode |
| Supply Voltage | 3.135V - 3.465V |
| Operating Case Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Management Interface | CMIS 4.0 compliant, 2-wire serial (I²C) up to 400kHz |
| Laser Safety | Class 1M, CDRH 21 CFR 1040, IEC 62368 |
Note: Specifications are based on NVIDIA documentation. Please confirm before ordering.
Selection Guide: Related Transceivers
| OPN | Type | Form Factor | Application |
|---|---|---|---|
| MMA4Z00-NS400 | Single-port SR4 | OSFP | ConnectX-7 HCA side |
| MMA4Z00-NS | Twin-port 2x400G | OSFP | Switch side (Quantum-2 / Spectrum-4) |
| MFP7E10-N0XX | Straight fiber cable | MPO/APC-12 | 400G links (4+4 fibers) |
| MFP7E20-N0XX | 1:2 splitter cable | MPO/APC-12 | 200G fan-out (2+2 fibers) |
Product Advantages
- End-to-End NVIDIA Integrity: Rigorous production testing ensures optimal performance and durability in NVIDIA-based infrastructures.
- Automatic Speed & Power Adaptation: Dynamically switches between 400G and 200G modes based on the connected cable, optimizing energy efficiency.
- Future-Ready Design: CMIS 4.0 compliance and support for advanced diagnostics enable seamless integration into next-gen data centers.
- Simplified Inventory: One transceiver part number works for both InfiniBand and Ethernet deployments.
Service & Support
Hong Kong Starsurge Group provides comprehensive support for your networking infrastructure:
- Technical pre-sales consultation to ensure correct transceiver and cable selection.
- Global shipping with secure packaging and fast delivery options.
- Post-sales support for installation and troubleshooting.
- Warranty and return services subject to terms and conditions.
Frequently Asked Questions
Q: Can the MMA4Z00-NS400 be used in a BlueField-3 DPU?
A: No. BlueField-3 adapters only accept QSFP112 form factor modules. This OSFP module is designed for ConnectX-7 OSFP adapters and switches.
Q: What is the difference between the green and aqua MPO connectors?
A: Green indicates an Angled Polished Connector (APC) used in this transceiver. Aqua indicates Ultra-polished Connector (UPC). They are not compatible due to different polish angles.
Q: How does the transceiver automatically switch to 200G mode?
A: When an MFP7E20 splitter cable is inserted, only two of the four fiber channels are physically present. The transceiver detects this and activates only two lanes, reducing speed and power.
Q: What is the typical power consumption at 400G?
A: Typical power is 8.0W, with a maximum of 8.5W. In 200G mode, typical power drops to 5.5W.
Handling & Installation Precautions
- Always use dust caps on optical ports when not connected. Save the caps for future use.
- Clean both the transceiver receptacle and the fiber connector before insertion. Contamination is a leading cause of link failure.
- Avoid exposure to static discharge. Follow ESD-safe handling procedures.
- Do not mix UPC and APC connectors; verify connector type (green shell = APC).
- Ensure the host device (adapter/switch) supports the OSFP form factor and the required firmware version.
About Hong Kong Starsurge Group Co., Limited
Founded in 2008, Hong Kong Starsurge Group is a technology-driven provider of network hardware, IT services, and system integration solutions. We serve customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related networking equipment. Our experienced sales and technical team supports industries such as government, healthcare, manufacturing, education, finance, and enterprise. With a customer-first approach, Starsurge focuses on reliable quality, responsive service, and tailored solutions that help clients build efficient, scalable, and dependable network infrastructure. We offer IoT solutions, network management systems, custom software development, multilingual support, and global delivery.
Key Facts at a Glance
Compatibility Matrix
| Component | Compatible? | Notes |
|---|---|---|
| ConnectX-7 OSFP Adapter | ✅ Yes | Native OSFP cage |
| Quantum-2 Switch (Twin-port OSFP) | ✅ Yes | Requires twin-port on switch side |
| Spectrum-4 Switch | ✅ Yes | With appropriate OSFP ports |
| BlueField-3 DPU | ❌ No | Requires QSFP112 modules |
| MFP7E10 Straight Cable | ✅ Yes | For 400G mode |
| MFP7E20 Splitter Cable | ✅ Yes | For 200G fan-out mode |
Buyer Checklist
- Confirm your adapter/switch supports OSFP form factor and 400G NDR/Ethernet.
- Select appropriate fiber cables: straight (MFP7E10) for 400G, splitter (MFP7E20) for 200G fan-out.
- Ensure fiber type is multimode OM3 or OM4 with MPO-12/APC connectors.
- Verify case temperature range and airflow in your chassis.
- Check for any firmware requirements on the host device.
