NETCONNECT Category 6 Unshielded Patch Panel 1U Rack-Mountable 24 Port ANSI/TIA-568.2-D Compliant IEEE 802.3bt Compatible
Detalhes do produto:
| Número do modelo: | 760237024 |
| Documento: | 760237024 _ .pdf |
|
Informação detalhada |
|||
| Estilo do painel: | Direto | Variação da resistência de contacto: | 6 |
|---|---|---|---|
| Tipo de cabo: | Não blindado | Cor: | Preto |
| Tipo de condutor: | Sólido | Encalhado | Módulos, quantidade: | 4 |
| Destacar: | 1U Rack-Mountable Patch Panel,ANSI/TIA-568.2-D Compliant Distribution Module Panel,IEEE 802.3bt Compatible Network Patch Panel |
||
Descrição de produto

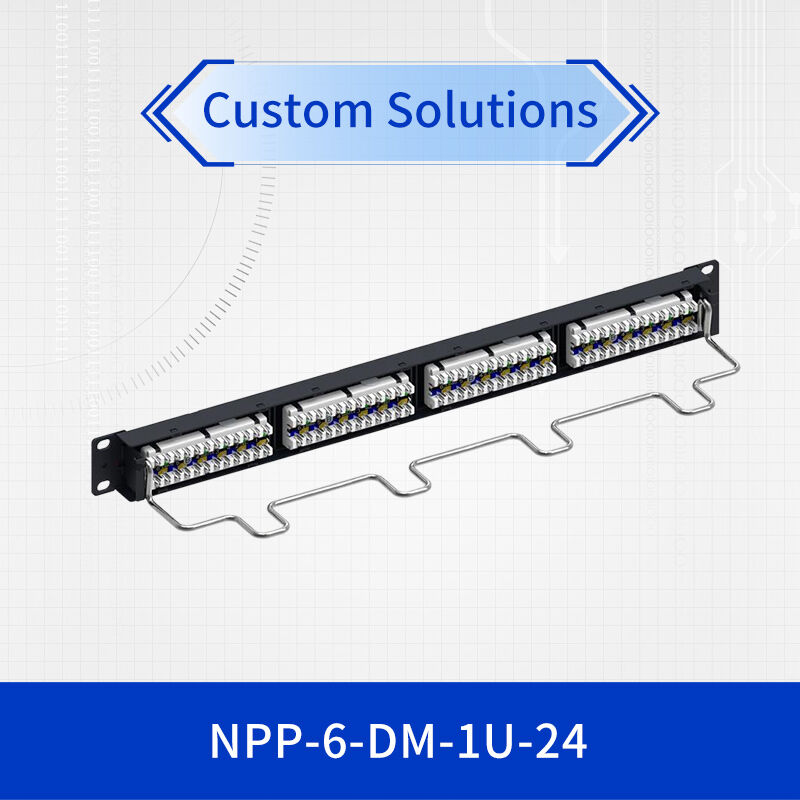

NETCONNECT Cat 6 Unshielded Distribution Module Panel, 1U, 24 Port
Product Overview
The NETCONNECT represents a high-performance Category 6 unshielded patch panel designed for modern enterprise networking environments. This 1U rack-mountable distribution module delivers 24 ports of reliable connectivity while optimizing rack space utilization. Engineered to meet rigorous industry standards, this patch panel ensures consistent performance for both data and power delivery applications.
Key Features & Benefits
High-Density Design
24 ports in a single 1U space maximize rack efficiency while maintaining accessibility for cable management.
Universal Compatibility
Supports both solid and stranded conductors from 22-24 AWG, accommodating various cable types.
Enhanced Durability
Rated for 750+ insertion cycles with nickel-plated contacts for long-term reliability.
Power over Ethernet Ready
Fully compliant with IEEE 802.3bt (Type 4) for high-power PoE applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Unshielded Distribution Module Panel, Category 6 |
| Port Configuration | 24 ports, 1U rack space |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Termination Type | IDC (Insulation Displacement Connection) |
| Wiring Schemes | T568A & T568B |
| Compatible Cable | 22-24 AWG, solid or stranded |
| Dimensions (HxWxD) | 44.45mm x 482.6mm x 119.38mm (1.75" x 19" x 4.7") |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Insertion Life | 750+ cycles minimum |
| PoE Compliance | IEEE 802.3bt (Type 4) compatible |
Performance Specifications
| Parameter | Specification |
|---|---|
| Dielectric Withstand Voltage (Contact-to-Contact) | 1,000 Vac @ 60 Hz |
| Dielectric Withstand Voltage (Conductive Surface) | 1,500 Vac @ 60 Hz |
| Insulation Resistance | 500 MΩ minimum |
| Current Rating | 1.5 A @ 20°C (68°F) |
| Plug Retention Force | 133 N (29.9 lbf) minimum |
Recommended Applications
- Enterprise Network Infrastructure: Ideal for main distribution and intermediate distribution frames in corporate environments
- Data Center Deployments: Suitable for server room and data center patching with high-density requirements
- PoE-Enabled Networks: Supports Power over Ethernet applications including IP cameras, access points, and VoIP phones

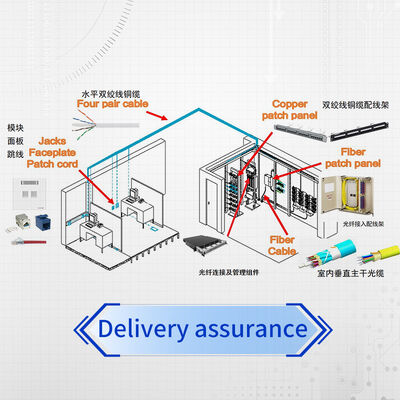

- Structured Cabling Systems: Perfect for TIA-568 compliant structured cabling installations
- Commercial Building Networks: Designed for office buildings, educational facilities, and healthcare environments
Installation & Design Features
This Category 6 patch panel features a straight panel design with integrated cable management, facilitating organized installations in standard 19-inch racks. The high-impact, flame-retardant thermoplastic construction ensures durability, while the powder-coated steel frame provides structural integrity. The panel supports both T568A and T568B wiring schemes, offering flexibility for various installation requirements.
Compliance & Certifications
- UL 94 V-0 Flammability Rating
- RoHS, UK RoHS, and China RoHS Compliant
- REACH SVHC Compliant
- ISO 9001:2015 Quality Management System
- RCM Compliant (Electrical Safety & Telecommunications)
Frequently Asked Questions
What types of cable are compatible with this patch panel?
This unshielded distribution module supports both solid and stranded conductors ranging from 22-24 AWG, with cable diameters between 0.762mm (0.03in) and 1.168mm (0.046in).
Does this patch panel support Power over Ethernet applications?
Yes, this Category 6 patch panel fully complies with IEEE 802.3bt (Type 4) recommendations for safe power delivery over LAN cabling when installed according to industry standards.
What is the expected lifespan of this patch panel?
The panel is rated for a minimum of 750 insertion cycles with IEC 60603-7 compliant plugs, ensuring long-term reliability in frequently reconfigured environments.
Installation Notes
- Ensure proper cable strain relief to maintain termination integrity
- Follow manufacturer recommendations for bend radius and cable management
- Verify compatibility with existing cabling infrastructure before installation
- Maintain appropriate operating temperature range for optimal performance
- Use proper termination tools to ensure reliable IDC connections
