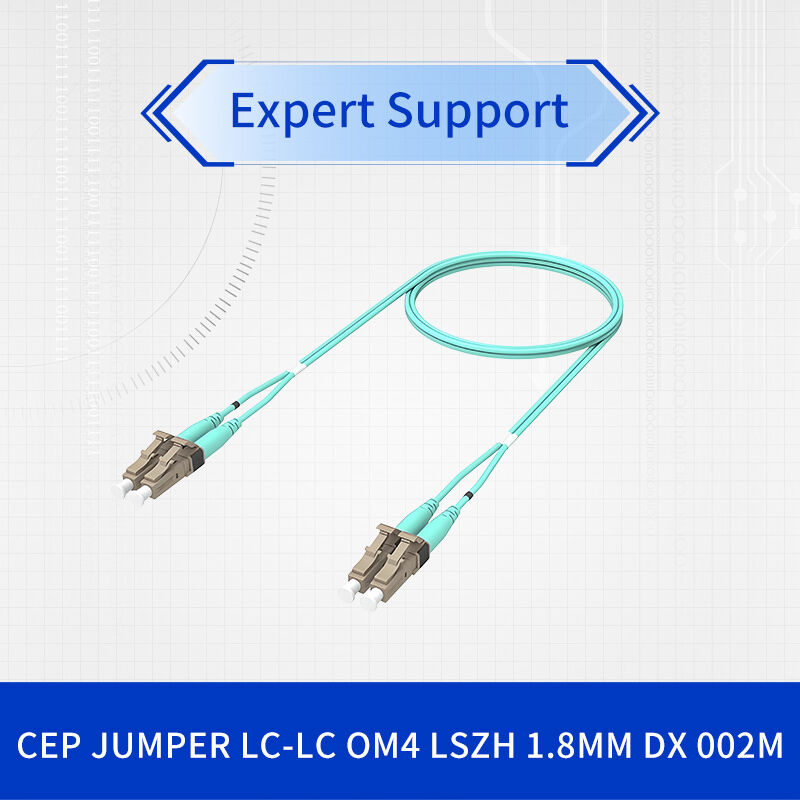

CommScope OM4 LC-LC Duplex Fiber Optic Patch Cord, 50/125μm Multimode, Aqua, LSZH Jacket, 1.8mm
Detalhes do produto:
| Marca: | Commscope |
| Número do modelo: | CEP-LCLC-L40B002M |
| Documento: | CEP-LCLC-L40B.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | Negotiate |
| Detalhes da embalagem: | caixa |
| Tempo de entrega: | Baseado no inventário |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Fornecimento por projeto/lote |
|
Informação detalhada |
|||
| Interface, conector A: | LC/UPC | Características da interface, conector A: | Dupla x |
|---|---|---|---|
| Conector, Conector B: | LC/UPC | Características da interface, conector B: | Dupla x |
| Cor da bainha: | Verde água | Total de núcleos, número: | 2 |
| Destacar: | CommScope OM4 fiber optic patch cord,LC-LC duplex multimode fiber cable,50/125μm LSZH fiber optic cable |
||
Descrição de produto
CommScope OM4 LC-LC Duplex Fiber Optic Patch Cord, 50/125μm Multimode, Aqua, LSZH Jacket, 1.8mm
High-Performance Multimode Fiber Solution
CommScope's OM4 LC-LC duplex fiber optic patch cord delivers exceptional performance for high-speed data centers and enterprise networks. This premium multimode fiber optic patch cord features low-loss connectivity and superior bend resistance to ensure reliable signal transmission in demanding environments.
Key Advantages
- Optimized for 40G and 100G Ethernet applications
- Field-reversible LC duplex connectors for easy polarity management
- Low smoke zero halogen (LSZH) jacket for enhanced safety
- Factory terminated and 100% tested for guaranteed performance
- Bend-resistant fiber technology minimizes signal degradation
Product Overview
The CommScope OM4 LC-LC duplex fiber optic patch cord represents the latest in multimode fiber technology, designed to support high-bandwidth applications in modern data centers and enterprise networks. This multimode LC-LC fiber patch cord utilizes 50/125μm bend-resistant fiber that exceeds industry standards for optical performance and reliability.
Key Features
- Duplex LC/UPC connectors on both ends
- Aqua green jacket for easy OM4 identification
- 1.8mm diameter LSZH cable jacket
- Available in lengths from 1 to 30 meters
- Zipcord design for easy separation and management
- Compliant with TIA/EIA-568-C.3 and ISO/IEC 11801 standards
Technology & Standards
This multimode fiber optic patch cord incorporates advanced optical fiber technology that meets rigorous international standards. The product complies with TIA/EIA-568-C.3 and ISO/IEC 11801 specifications, ensuring interoperability with existing network infrastructure. The OM4 LC-LC fiber patch cord features enhanced bandwidth capabilities that support high-speed data transmission requirements.
Working Principle

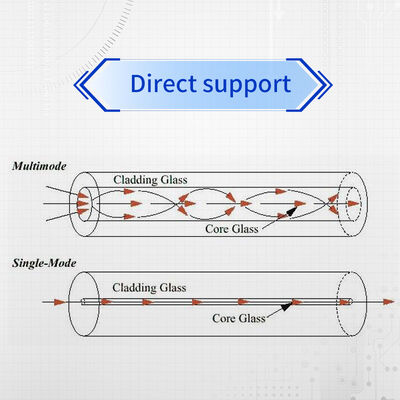

Fiber optic patch cords transmit data using light pulses through glass or plastic fibers. The multimode LC-LC fiber patch cord utilizes multiple light paths (modes) to carry information, making it ideal for short to medium distance applications. The LC connectors provide precise alignment of fiber cores, minimizing insertion loss and back reflection for optimal signal integrity.
Applications
- Data center interconnects and cross-connects
- Server to switch connections
- Storage area networks (SAN)
- Telecommunications infrastructure
- Enterprise network backbone connections
- High-performance computing environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | CEP1CLC140B |
| Fiber Type | OM4 Multimode, 50/125μm |
| Connectors | LC/UPC to LC/UPC Duplex |
| Cable Jacket | LSZH, 1.8mm Diameter |
| Attenuation | ≤3.0 dB/km @ 850nm ≤1.0 dB/km @ 1300nm |
| Operating Temperature | -10°C to +60°C |
| Bend Performance | 15mm radius: ≤0.10dB @850nm 7.5mm radius: ≤0.20dB @850nm |
| Compliance | China RoHS, ISO 9001:2015, RoHS |
Selection Guide
| Model Number | Length | Color | Application |
|---|---|---|---|
| CEP1CLC140B003M | 3 meters | Aqua Green | Rack Connections |
| CEP1CLC140B005M | 5 meters | Aqua Green | Cross-Connect |
| CEP1CLC140B010M | 10 meters | Aqua Green | Data Center Aisle |
| CEP1CLC140B020M | 20 meters | Aqua Green | Longer Runs |
Competitive Advantages
- Superior Bend Performance: Advanced fiber design maintains signal integrity even in tight bend scenarios
- Field-Reversible Connectors: Easy polarity reversal without special tools
- Enhanced Safety: LSZH jacket reduces toxic emissions in case of fire
- Quality Assurance: 100% factory tested with individual test results
- Future-Proof Design: Supports current and next-generation high-speed networks
Service & Support
All CommScope fiber optic patch cords are backed by comprehensive technical support and service. Each multimode LC-LC fiber patch cord undergoes rigorous quality control processes and is shipped with individual test results. Our global support network ensures timely assistance for installation and integration challenges.
Frequently Asked Questions
What is the maximum data rate supported by this OM4 patch cord?
This multimode fiber optic patch cord supports data rates up to 100Gbps at distances up to 150 meters using appropriate transceivers, making it ideal for 40G and 100G Ethernet applications.
Can I change the polarity of the LC connectors in the field?
Yes, the duplex LC connectors are designed for easy field polarity reversal without special tools, providing flexibility during installation and maintenance.
What does the LSZH jacket designation mean?
LSZH stands for Low Smoke Zero Halogen, indicating the cable jacket produces minimal smoke and no halogenated gases when exposed to fire, enhancing safety in enclosed spaces.
Are test results included with each patch cord?
Yes, each multimode LC-LC fiber patch cord is 100% factory tested, and individual insertion loss test data is supplied with each packaged unit.
What is the minimum bend radius for this cable?
The cable maintains excellent performance with a bend radius as low as 7.5mm, with attenuation change less than 0.20dB at 850nm.
Installation & Handling Guidelines
- Always use proper cable management to avoid sharp bends below the minimum radius
- Keep dust caps on connectors when not in use to prevent contamination
- Avoid excessive tension during installation - maximum pulling force should not exceed 25 lbs
- Ensure connectors are clean before mating using appropriate fiber optic cleaning tools
- Store in a cool, dry environment away from direct sunlight when not in use
- Verify compatibility with existing equipment and transceivers before deployment
