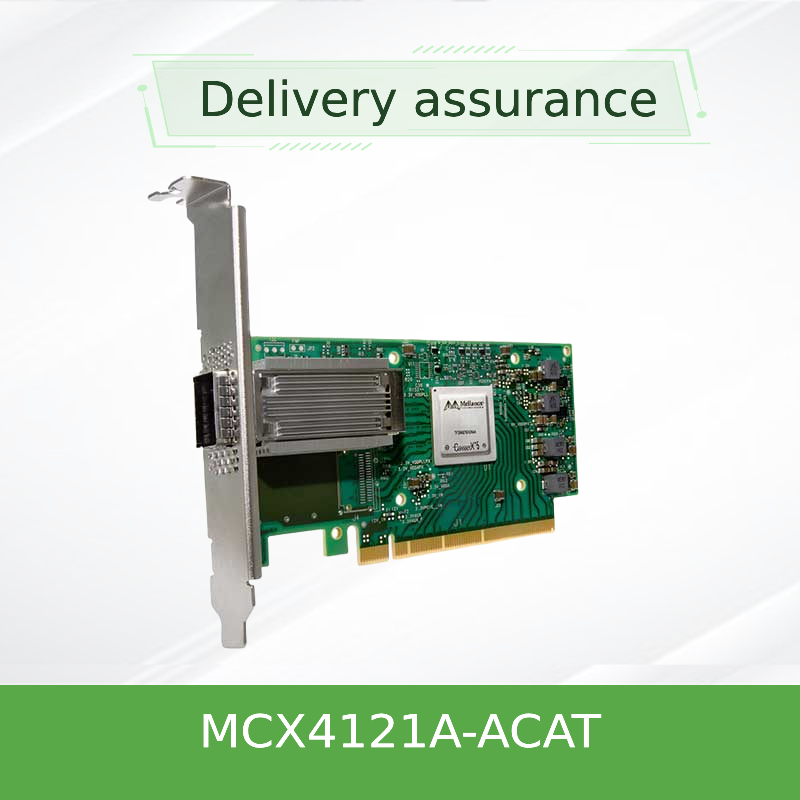

Mellanox ConnectX-4 Lx MCX4121A-ACAT Dual-Port 25GbE SFP28 PCIe3.0 x8 Network Adapter Card with Hardware-accelerated RDMA
Detalhes do produto:
| Marca: | Mellanox |
| Número do modelo: | MCX4121A-ACAT |
| Documento: | connectx-4-lx-en-card.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | Negotiate |
| Detalhes da embalagem: | Caixa externa |
| Tempo de entrega: | Baseado no inventário |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Fornecimento por projeto/lote |
|
Informação detalhada |
|||
| Aplicação: | Servidor | Tipo de interface:: | Rede |
|---|---|---|---|
| Portas: | Dual | Velocidade máxima: | 25GBE |
| Tipo de conector: | SFP28 | Tipo: | conectado |
| Doença: | novo e original | Modelo: | MCX4121A-ACAT |
| Nome: | MLELANOX REDET CHARD CONNECTX-4 LX EN 25GBE DUAL-PORT SFP28 PCIE3.0 X8 CARTA DE INTERFACE DE REDE MC | Palavra-chave: | Cartão de rede Mellanox |
| Destacar: | PCIe3.0 x8 Network Adapter Card,SFP28 Network Interface Card,Hardware-accelerated RDMA NIC |
||
Descrição de produto
- Dual-port 25GbE connectivity with backward compatibility
- Hardware-accelerated RDMA over Converged Ethernet
- Advanced virtualization with SR-IOV support
- Overlay network encapsulation/decapsulation offload
- Multi-host technology for cost-effective scaling
- Sub-microsecond latency for demanding applications
The Mellanox ConnectX-4 Lx MCX4121A-ACAT represents a sophisticated networking solution designed to address the challenges of modern virtualized data centers. This advanced network card delivers dual-port 25GbE connectivity while maintaining backward compatibility with 10GbE and 1GbE standards, providing exceptional flexibility for evolving infrastructure requirements.
Engineered for performance-intensive environments, this NIC card incorporates cutting-edge technologies to optimize server utilization and reduce total cost of ownership. The network interface card delivers robust performance for cloud computing, data analytics, and storage applications through its intelligent acceleration capabilities.
- Dual-port SFP28 interface configuration
- 25/10/1 GbE speed support per port
- PCI Express 3.0 x8 host interface
- Hardware RoCE (RDMA over Converged Ethernet)
- SR-IOV virtualization with 256 virtual functions
- NVGRE, VXLAN, and GENEVE offloading
- Mellanox PeerDirect communication acceleration
- Host management capabilities with UEFI support
The MCX4121A-ACAT network card leverages several advanced technologies including Remote Direct Memory Access over Converged Ethernet (RoCE) for low-latency data transfers, Single Root I/O Virtualization (SR-IOV) for efficient resource allocation, and hardware-offloaded overlay network processing. This NIC card also implements Mellanox Multi-Host technology, enabling multiple servers to share a single network interface while maintaining complete isolation.
The network interface card supports comprehensive protocol offloading including TCP/UDP checksum calculations, segmentation, and receive-side scaling. The architecture ensures optimal performance for both traditional and software-defined networking environments through its sophisticated acceleration engines.
| Specification | Details |
|---|---|
| Product Model | MCX4121A-ACAT |
| Port Configuration | Dual-port SFP28 |
| Supported Speeds | 25/10/1 GbE per port |
| Host Interface | PCIe 3.0 x8 |
| Form Factor | PCIe HHL (Full Height) |
| Virtualization | SR-IOV (256 VFs) |
| RDMA Support | RoCE v1/v2 |
| Power Consumption | < 12W typical |
RoCE (RDMA over Converged Ethernet) enables direct memory access between servers without CPU involvement, significantly reducing latency and CPU utilization. This NIC card implements both RoCE v1 and v2, providing low-latency performance for distributed applications and storage systems.
SR-IOV allows direct assignment of adapter resources to virtual machines, bypassing the hypervisor for network operations. This network interface card supports up to 256 virtual functions, enabling near-native performance for virtualized workloads while maintaining security isolation between tenants.
The MCX4121A-ACAT supports various SFP28 transceivers and direct attach copper cables for 25GbE, 10GbE, and 1GbE connections. For optimal performance, use Mellanox-certified cables and transceivers that have been validated for compatibility with this specific network card model.
